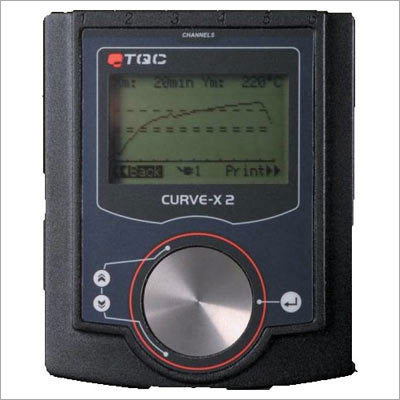

TTR Data Logger

TTR Data Logger
TTR Data Logger
Product Code : Curve X-2
Brand Name : TQC
Product Description


CurveX2-USB oven temperature logger (Traveling type) standard system CX 1500 consisting of

(A) CX1002     Curve-X-2 datalogger incl. Software and datacable

(B) CX2005     Curve-X insulation box standard type (small)

© CX2011       Curve-X heat-sink

(D) CX4001     Carrying case with trolley

(E)  Calibration Certificate of Data Logger


Technical Specifications :

All CurveX2 USB systems

Come with a high quality

Insulation box:

  • Outer shield and latches

Of high-grade stainless steel.

  • Magnet plate for holding probes when not in use.
  • Cable storage device, allowing surplus length of cables to be stored inside the box. This prevents loose cables that could get stuck in the oven.
  • Efficient heat sink to extend the protection time even longer.

Special slimline, low temperature and high temperature boxes are available. Custom dimensions and temperature ranges on request.


Specifications standard box and heatsink :

Dimensions : height 140 mm, width 225 mm.,

                      Length 255 + 30 mm (handle)

Weight         : 4200 gram

Heatsink      : height 70 mm, width 140 mm,

                       Length 190 mm.

Weight         : 1900 gram

Technical specifications Curve-X2 USB Datalogger


Size              : 85 x 105 x 30 (50 with add-on) mm.

Weight        : 285 Gram

Channels    : 6 or 12 with “add on” unit

Range         : -50°C to + 1200°C / -58°F to + 2200°F

Accuracy    : + 0.3°C/0.6°F

Resolution    : 0.1°C/0.2°F

Interval         : From 1 sec. to 1 hour

Memory        : 10 batches of 25000 readings each, or one large

                         batch of 250.000 readings

Batteries       : 3 pcs. 1.5V AA-type

Battery life    : 1200 hours continuous use or 10.000 hours stand-by.
