Tensile Testing Machine

Tensile Testing Machine
Tensile Testing Machine
Product Code : UNIMATE 050-052
Brand Name : ERICHSEN
Product Description

ERICHSEN  Tensile Testing Machine

Model : UNIMATE 050-052

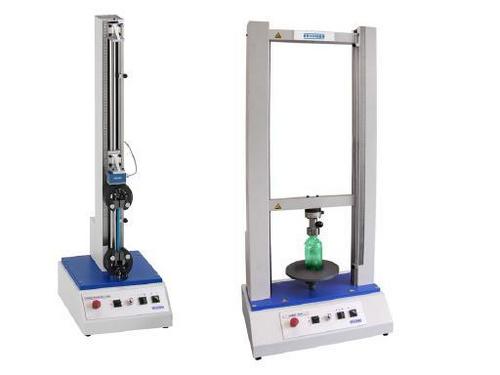

UNIMAT® 050 “ with parallel clamping device
                         with wedge type clamping device
                         with roller type clamping device

General information
The compact material testing machines of the UNIMAT® serie have been specifically designed to facilitate goods acceptance inspections and quality checks simply and fast. Their robust construction also makes them suitable for in-process controls as well as for tensile and pressure tests. Together with the meassuring systems PHYSIMETER® 906 MC-B or PHYSIMETER® 906 MC-S these machines comply with the current standards for tensile testing machines and meet the regulations relating to CE qualification.

UNIMAT® 050
The desktop models of the 050 series are small in dimension and require only a minimum of space.
The spindle-driven cross-arm runs through two supports which are arranged behind each other and connected at the top by a fixed cross-arm. The lower part of the supports joins a base plate which forms the upper element of a sturdy sheet metal casing. Two different basic versions are available:

Model 050 M
with manual drive by crank handle and irreversible trapezoidal spindle

Model 050
with electric drive by speed-controlled DC motor and recirculating ball screw to allow precise regulation.

Model 050 M can be equipped with a digital position measurement display and Model 050 with a digital
position and speed measurement display on request.

UNIMAT® 052
We recommend our serie UNIMAT® 052 testing machines for testing either hard and tough or soft specimens. These tensile testing machines are equipped with two columns and two recirculating ball screws which guide the travelling cross-arm. The upper fixed cross-arm and the base plate in conjunction
with the travelling cross-arm between the two from two separate working areas.

Display units
In connection with a suitable force transducer and the measuring system PHYSIMETER® 906 MC-B or PHYSIMETER ® 906 MC-S tensile and pressure forces can be determined and the maximum values can be stored. Using the PHYSIMETER® 906 MC-S additional measuring data can be stored and evaluated statistically. The integrated force transducer can be protected against overloading by entering limiting values (only in case of PHYSIMETER® 906 MC-S) so that the testing machine is switched off automatically once the maximum force is reached.

The system components

UNIMAT® / Force Transducer / PHYSIMETER® 906 MC-B or PHYSIMETER® 906 MC-S

provide the means to carry out numerous applicationrelated material tests on an economical basis


device

Technical testing accessories

A wide range of clamping tools and testing devices are available as standard equipment or in customized versions for special materials. The grip heads are quick and easy to change by way of appropriate plug-type connections, providing the user with an optimum means to adapt to the various specimen requirements. The selection ranges from basic parallel grip heads, e.g. for plastic, textile, rubber and paper specimens, to wedge-type clamping tools, pneumatic clamps, and pressure plates and bending devices. A technical information sheet "Grips" is available for these tools. The measuring ranges of the PHYSIMETER® are determined by the specific test purpose. The relevent working area as well as the nominal force of the test frame result from the type of stressing. The PHYSIMETER® 906 MC-B/PHYSIMETER® 906 MC-S are calibrated in the tensile and pressure range by certified measuring equipment.

The size and type of force transducers to be used is determined by the purpose of the test, the type of stressing, the relevant field of work and the nominal force of the test stand. All electronic force transducers of the PHYSIMETER® series are calibrated with certified measuring equipments.
Recommended configurations
A fully-functioning basic unit comprises at least the following:
• 1 UNIMAT®
• 1 Measuring system 906 MC-B or Measuring system 906 MC-S
• 1 external force transducer for forces > 1 Kn
• Grips (see separate leaflet)
.
By the addition of data measuring software PHYSISOFT II, a PC and the measuring system PHYSIMETER ® 906 MC-S, the basic unit can be expanded to form a complete measuring station.





UNIMAT® 050 M and

050 MS (manual)

UNIMAT® 050, 050 S and

050 SV (electric)

UNIMAT® 052, 052 S and

052 SV (electric)

Testing force max.

2 kN

2 kN

5 kN

Measuring uncertainty

0.1 %

depends on force transducer

0.1 %

depends on force transducer

0.1 %

depends on force transducer

Force measurement (option)

Selectable nominal forces:
10, 20, 50, 100, 200, 500,1000 and 2000 N.
The force is displayed on the PHYSIMETER® 906 MC-B/PHYSIMETER® 906 MC-S.
Selectable nominal forces:
10, 20, 50, 100, 200, 500,1000 and 2000 N.
The force is displayed on the PHYSIMETER® 906 MC-B/PHYSIMETER® 906 MC-S.
Selectable nominal forces:
10, 20, 50, 100, 200, 500,1000, 2000 and 5000 N.The force is displayed on the PHYSIMETER® 906 MC-B/PHYSIMETER® 906 MC-S.

Position measurement,

incremental (option

Resolution: 0.01 mm, by way of separate display equipment
Resolution: 0.01 mm,
6-digit LCD
Resolution: 0.01 mm,
6-digit LCD

Drive-mode

Manual drive / One revolution is equivalent to 1 mm of stroke

DC motor

DC motor

Cross-arm speed

--

0.2 ... 1000 mm/min

0.2 ... 1000 mm/min

Working area (inner width)

50 mm

50 mm

300  mm

Max. cross-arm stroke

(without force transducer and

clamping tools)

720 mm

720 mm

860 mm

Connected load

--

230 V - 50/60 Hz

230 V - 50/60 Hz

Dimensions

1020 x 310 x 390 mm

1020 x 310 x 390 mm

1145 x 495 x 350 mm

Net weight (approx.)

20 kg

32 kg

45 kg

Product Description:
UNIMAT® 050 M - 2 kN : testing force 2 kN, with manual crank drive

UNIMAT® 050 MS - 2 kN : testing force 2 kN, with manual crank drive and position measurement

UNIMAT® 050 - 2 kN : testing force 2 kN, with electric drive motor

UNIMAT® 050 S - 2 kN : testing force 2 kN, with electric drive motor and position measurement

UNIMAT® 050 SV - 2 kN : testing force 2 kN, with electric drive motor and position and speed
                                     measurement
UNIMAT® 052 - 5 kN : testing force 5 kN, with electric drive motor

UNIMAT® 052 S - 5 kN : testing force 5 kN, with electric drive motor and position measurement

UNIMAT® 052 SV - 5 kN : testing force 5 kN, with electric drive motor and position and
                                         speed measurement
