Multi Grit Tester (Gravelometer)

Multi Grit Tester (Gravelometer)
Multi Grit Tester (Gravelometer)
Product Code : 508VDA/508SAE
Brand Name : ERICHSEN
Product Description

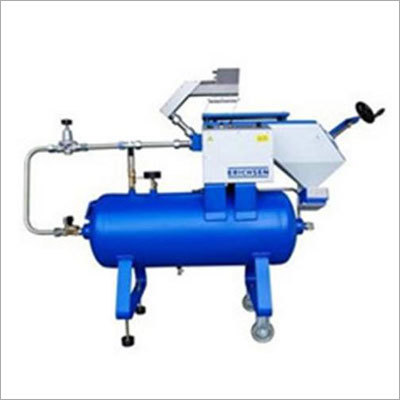

Multi Grit Tester (Gravelometer)


ERICHSEN Stone Hammer Blow Testing Instrument acc. to VDA, MULTI GRIT TESTER (GRAVELOMETER)
MODEL : 508 VDA
Electro-pneumatically controlled multi-blow test instrument for connecting to a 3/8" stationary compressed air supply, consisting of the following items:
shot jet unit with compressed air vessel, pressure reduction valve for working pressure and acceleration tube,
adjustable vibratory feeder for feeding the impact particles,
operator's control panel with main switch, feed time adjustment, switch for initiating the stone hammer blow test as well as a multifunctional display for read off the working pressure, the duration of the test, the setting of the vibratory feed and the number of tests conducted (total / temporary),
manual specimen applying device.


STANDARDS
FORD FLTM BI 157-06
PSA D24 1312
RENAULT D24 1702
DIN EN ISO 20567-1
 MODEL : 508 SAE


Electro-pneumatically controlled multi-blow test instrument for connecting to a 3/4" stationary compressed air supply, consisting of the following items:
shot jet unit with compressed air vessel, pressure reduction valve for working pressure and acceleration tube,
adjustable vibratory feeder for feeding the impact particles,
operator's control panel with main switch, feed time adjustment, switch for initiating the stone hammer blow test as well as a multifunctional display for read off the working pressure, the duration of the test, the setting of the vibratory feed and the number of tests conducted (total / temporary),
specimen fixing device with adjustable angle of bombardment.

The scope of supply includes 1 kg shot (grit acc. to ASTM D 3170) and an Operating Instructions.
STANDARDS
GMW 14700
SAE J400
ASTM D 3170
