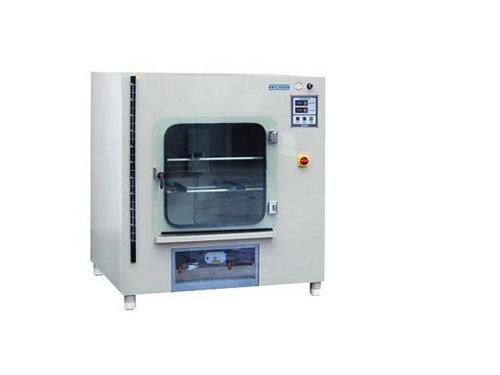

Humidity Cabinet

Humidity Cabinet
Humidity Cabinet
Product Code : CORROTHERM 610
Brand Name : ERICHSEN
Product Description

ERICHSEN Humidity Cabinet CORROTHERM 610/610e

In accordance with the most required standards

(DIN, DIN EN ISO, ISO, ASTM, BS, JIS, IEC, MILSTD)



Purpose and application

Ferrous and non-ferrous metals are attacked continuously by humidity, acids, solutions, gases etc.. Thereforethese materials require the necessary preparatory techniques and protective coatings. Over and above this, the increase in preparatory treatment demands and environment protection aspects lead to further system improvements of coating substances. The choice of the correct combination of material and the surface protection is therefore of decisive importance for the corrosion resistance of work pieces and assemblies. Corrosion tests are therefore still very essential for quick quality control and for the investigation of weak areas. In order to make these tests comparable, national and international standards have been drawn up for test conditions and duration.



Procedure

The CORROTHERM 610 is an extremely compact, space-saving corrosion test apparatus, made entirely of non-polluting PP material and contains all the necessary equipment for testing in accordance with the most frequently used spray mist and condensation water tests (DIN 50 021, DIN EN ISO 6270-2, DIN EN ISO 7253, ISO 11503, ASTM B 117, ASTM B 368 T “CASS TEST”).

Two different capacities (400 l and 1000 l) and two different versions (610 and 610e) are available.

Special features

The box-type construction with the front door makes provision for ease of control and accessibility to the test chamber. The spray nozzle is fitted into the inner rear panel so that the entire test chamber is available for the specimens. Suspension rods are fitted across the test chamber at three different levels and on these smaller ssemblies, directly or test panels can be placed on “U” shaped holders. In the bottom of the test chamber is a heating element to provide optimum conditions for humidifying and temperature control in the test chamber. Within the test chamber itself is the storage tank for up to 100 litres (400 l Version) or up to 280 litres (1000 l Version) of spray solution. This enables the test apparatus to work over the weekend without supervision. The Corrosion Test Apparatus of the CORROTHERM 610 series is manually operated. Clearly arranged buttons are available for functions such as the salt spray test, condensation water test and vapour evacuation. Via the control buttons, which are at eye level, the temperature display, time switch, and the test duration display functions are available and also permits the automatic switch off function on completing the pre-programmed test time (i.e. 240 h). The display is reversible and can represent the test time in hours and minutes. With an adjustable valve, also at eye level, the spray pressure can be finely adjusted and can be read from the manometer directly above. A continuous controllable dosing pump (low-maintenance diaphragm pump) ensures the correct quantity of spray solution to the nozzle and the humidifier works automatically.

The CORROTHEM 610e has the same capacity as Model 610, but is operated with a microcontroller and a four-lined LCD whereby all important parameters can be called up and entered. The display shows, amongst other things, the chamber temperature, the humidifier temperature and the spray pressure. As well as the pre-programmed test cycles (from the manufacturer) a total of up to 15 programmes can be stored.

Optionally, via an interface, the data can be transferred to a built-in printer.

 Technical Data

CORROTHERM 610/610e                                                                                             400 l                             1000 l

Capacity in l without dome area (approx.)                                               450                               970

Dimensions (W x D x H) in mm                                                  1320 x 720 x 1460         1640 x 820 x 1760

Dimensions without dome area (W x D x H) in mm                      800 x 710 x 800             1100 x 800 x 1100

Net weight in kg (approx.)                                                                      210                               300

Capacity of test panels (approx.)                                                            80                                 150

Test temperature range in °C                                                      from ambient temperature up to +50

Capacity of salt solution in l (approx.)                                                    100                               280

Power supply                                                                                              230 V/AC, 50/60 Hz

Power consumption in VA (approx.)                                                       2100                             3500

Compressed air supply in bar, approx. 5 - 8 Nm³/h                                  4 - 6                              4 - 6

Water supply in bar (water de-mineralised), approx. 1l/h                          2 - 4                              2 - 4
