Product Showcase
Home » Products » Moisture Meters » Cotton, Soil,Paper,Grain,Leather,Wood Moisture Meter

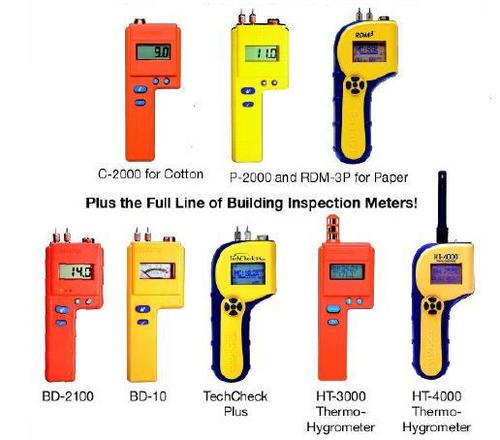

Cotton, Soil,Paper,Grain,Leather,Wood Moisture Meter

Cotton, Soil,Paper,Grain,Leather,Wood Moisture Meter
Cotton, Soil,Paper,Grain,Leather,Wood Moisture Meter
Product Code : C-2000 , P-2000
Brand Name : Delmhorst
Product Description



COTTON MOISTURE METER

Model : C-2000

A moisture tester is a valuable tool during the ginning process and when buying or selling cotton. Cotton ginned at the appropriate level of moisture produces the longest and strongest fibers.

The C-2000 utilizes the relationship between moisture content and electrical resistance to effectively measure the moisture content of cotton fibers. Its functionally designed case with built-in handle puts controls at your fingertips.

Features:

  • Microcontroller-based circuit for greater accuracy and reliability
  • Two separate scales for testing lint cotton or seed cotton
  • Set point with buzzer to alert you when a pre selected %MC has been reached
  • Stores up to 100 readings and displays the average and highest of the stored readings
  • Built-in calibration check

Specifications:

  • Moisture Range: 4%-16-%, lint cotton; 6%; 20%, seed cotton
  • Size: 7 1/2" x 3" x 13/4"
  • Battery: 9V Alkaline
  • Warranty: 1 year
  • Carrying Case: included

PAPER MOISTURE METER

Model : RDM-3P

Paper P-2000
The P-2000 is an electrical resistance-type moisture meter, utilizing the relationship between moisture content and electrical resistance. The contact pins mounted on the top of the meter are used for making direct contact with the material. Various external electrodes are also available for specific applications.

The P-2000 is especially useful for testing paperboard, corrugated stock, and paper tubes. It is ideal for plant superintendents, inspectors, buyers and salespeople.

Features:

  • Microcontroller-based circuit for greater accuracy and reliability
  • Three scales:
    • 4.3%-18% MC for paper
    • 5%-40% for baled scrap paper
    • 0 - 100 arbitrary scale for obtaining relative moisture indications on other material
  • Set point with buzzer to alert you when a pre-selected %MC has been reached
  • Stores up to 100 readings and displays the average and highest of the stored readings
  • Built-in calibration check



Paper The RDM-3P
The RDM-3P is fully equipped for testing paperboard, corrugated stock, and paper tubes using its paper scale, 0-100 reference scale, and baled paper scale. Whatever the situation calls for, the RDM-3P delivers. Advanced storage and recall features make it easy to organize multiple jobs, or even download data to a PC via the optional linkage software. The paper production industry has a new ally in the reliable and precise RDM-3P!

Features:

  • Three scales:
    • 5.3%-23% MC for paper
    • 8%-40% MC for baled scrap paper
    • 0 - 100 arbitrary scale for obtaining relative moisture indications on other material
  • Universal connector accepts Delmhorst external electrodes for:
    • Paper tubes
    • Moving web of paper
    • Stacked paper
    • Corrugated stock
  • Auto-shut off timer saves battery life
  • Menu driven operation
  • Rugged construction ensures years of reliable use
  • 9V battery
  • 1-year warranty
  • Carrying case

Various packages available to meet your specific needs:

With Case: Includes meter, carrying case, and additional contact pins. Order as RDM3PW/CS

RDM3P/PKG: Includes the meter and the PC/KIT software application program. This is the most complete package available and enables you to download stored readings via I/R to a PC or laptop.

SOIL MOISTURE METER

Model : KS-D1

The KS-D1 Digital Soil Moisture Tester, used with the GB-1 Gypsum Soil Blocks, make up a valuable system to monitor the soil moisture available to the plants. This system eliminates guesswork so that irrigation can be effectively scheduled according to plants' requirements. The KS-D1, housed in a rugged ABS plastic case, features reliable temperature stable semi-conductor technology with internal battery and calibration checks for users' full confidence. A membrane switch panel provides positive, tactile feel. Spring-loaded binding posts allow for positive contact with the blocks' leads.

Specifications:

  • Range: 0.1 to 15 Bars Tension
  • Display: 3 1/2 “ Digital LCD with 0-100 Arbitrary Scale
  • Size: 2 3/4” x 4 3/4” x 1 3/4””
  • Weight: 8 oz.
  • Battery: 1-9V
  • Carrying Case: included

Advantages:
The importance of water to plant growth is well known. Also, effective irrigation should be properly controlled in quantity and timing. Continuous and
appropriate use of soil moisture testing devices can

effectively aid in obtaining maximum crop yield at

optimum quality levels and conserve water.

Eliminate:

  • Under-irrigation – thus preventing wilting, and making fertilizer application more efficient.
  • Over-irrigation – with remarkable savings in power, labor, and water.

Prevent:
Soil spoilage due to excessive water and poor drainage.

Realize:
Bigger and better crops at lower cost.

Sensors

GB-1 Gypsum Blocks

The blocks are made of gypsum, cast around two concentric, stainless steel electrodes. They are
manufactured under controlled conditions to obtain a maximum degree of uniformity and fast response to soil moisture changes. The GB-1 measures 7/8” dia. x 1 1/8 “ in height. It is the most widely used sensing unit, easy to install and especially suited for extensive sampling of soil at various depths.





FLOORING MOISTURE METER

Model : HT-4000

Flooring HT-400
The moisture meters featured below were designed specifically to meet the needs of the flooring contractor. Key reasons to use a moisture meter for flooring are:

  • Detect if there is continuous moisture migration toward the surface
  • Test surface and mid-section of concrete slabs
  • Reduce chances of excess moisture in wood floors and sub-floors
  • Identify potential for delamination in synthetic floors

Our 26-ES electrode with insulated pins lets you check moisture below a floor covering before and after installation. And with our expanded offering that includes TechCheck PLUS, TotalCheck and MoistureCheck, it is even easier to choose a meter that will give you the superior value and high degree of accuracy and reliability you have come to expect from Delmhorst

NEW HT – 4000

Delmhorst is proud to introduce the HT-4000, a stand-alone thermo-hygrometer for flooring installers and restoration contractors alike. The HT-4000’s advanced RH/T sensor acclimates quickly to ambient temperature and humidity, using the same technology as our popular Total CheckTM and Navigator ProTM 3-in-1 moisture meters. For contractors who prefer having separate meters to one combination meter, the HT-4000 is the perfect solution. The meter’s sensor is also detachable, making the HT-4000 ideal for testing a concrete slab according to the ASTM F2170 standard

Outstanding Features:

  • RH Sensor – conforms to ASTM F-2170 standard for in-situ concrete testing (range 0 to 100%)
  • Temperature range -40°F to 255°F (-40°C to 124°C)
  • Built in Back-light makes reading in dark places a cinch
  • Dew Point range -40°F to 176°F (-40°C to 80°C)
  • GPP range 0.1 to 3820 GPP (Grains Per Pound)
  • GPK range 0.01 to 545 GPK (Grains Per Kilogram)
  • Vapor Pressure range 0 to 7 PSI (Pounds Per Square Inch)
  • Vapor Pressure range 0 to 47 KPA (Kilopascals)
  • Auto-shutoff timer saves battery life
  • Reading HOLD Feature
  • Rugged construction ensures years of reliable use
  • Sturdy plastic carrying case
  • 9-V Battery
  • 1 year warranty

HT-4000 Package Variations:

HT-4000 Flooring package : Includes meter, carrying case, (2) RH/T-S1 sensors, (1) RH/T-C1 cable for easy reading while sensor is in concrete, and (5) CS-2 Concrete sleeves for testing in multiple sites. Order as HT-4000/PKG

HT-4000 : Includes meter, (1) RH/T-S1 sensor, and carrying case. Order as HT-4000W/CS



GRAIN MOISTURE METER

Model : G-7

Grain G-7

The G-7 Grain Moisture Meter features a powerful micro-controller circuit. It is rugged, easy to use, and provides important statistics about the meter readings.

The G-7 is especially useful to test moisture content of grain at harvest time and while in storage. Or you can attach optional accessories to check moisture in hay

Features:

  • Microcontroller based circuit for greater accuracy and reliability
  • Built-in correction factors for Barley, Coffee, Corn, Flax, Hay, Oats, Rapeseed, Rough rice, Sorghum, Soybeans, Wheat, and Rye
  • Built-in temperature correction over the range of 32 - 160° F (0 - 70° C)
  • Programmable offset to match elevator
  • Stores up to 150 accumulated readings in user-defined batches by grain
  • Displays the average and highest readings, and standard deviation and co-efficient of variance of stored readings
  • Adjustable set point indicator to alert you when a pre-selected %MC has been reached
  • Connector for an external electrode
  • Built-in calibration check

Specifications:

  • Nominal Range: 9-30% MC depending on the grain
  • Size: 7 1/4” x 6” x 5 1/2”
  • Battery: (1) 9-V Alkaline
  • Warranty: 1 Year
  • Carrying Case: Optional



WOOD WORKER

Model : RDM3

Cabinetmakers, woodworkers and craftsman take pride in their work and realize that excessive moisture can cause major problems in their finished products. Delmhorst moisture meters provide accurate results to ensure the quality of each and every project. Whichever model you choose, you will find the superior value and the high degree of accuracy and reliability you have come to expect from Delmhorst.

Our wide assortment of meters and electrodes gives you the flexibility to choose the right combination for your application.



RDM3
The RDM3 is a handheld moisture meter packed with features and is perfect for the lumber and woodworking industries. Features include: full onscreen reading recall with date and time stamp, job grouping, graphical display, easy to navigate menu options, customizable auto-shut off, optional application software program with I/R linkage to download stored readings to a PC or laptop, and great looking two-tone case with rubber grip handle.

The RDM3 is ideal for anyone who needs to collect and analyze key statistical information.

Features:

  • 6-60% MC range depending on species/temperature
  • Built in wood species corrections for 71 species of wood
  • Built in temperature compensation over the range of 0° to 255° F (-18° to 124°C)
  • Integral contact pins mounted on top of meter provide 5/16” penetration
  • Connector for external electrode
  • On-screen reading recall of up to 1400 stored readings
  • Date and time stamp for each stored reading
  • Job groupings
  • Optional infrared linking capability w/ application software
  • 0.1% MC resolution
  • Operating Temperature -4°to158°F (-20° to 70°C)
  • 9V battery
  • 1-year warranty
  • Carrying case

Various packages available to meet your specific needs:

With Case: Includes meter, carrying case, and additional contact pins. Order as RDM3W/CS

RDM3/PKG: Includes the meter, 26-ES electrode, extra contact pins for the meter, extra #496 pins for the 26-ES electrode and carrying case

RDM3 PLUS: Includes everything in the RDM3/PKG, PLUS the PC/KIT software application program. This is the most complete package available and enables you to download stored readings via I/R to a PC or laptop

RDM3 PC/KIT-Application Software Program

Enables you to download stored readings from the meter to a PC via infrared linking. By ordering this option, you will be able to:

  • Export job data to Excel
  • Customize printing options
  • View readings and stats in the application program
  • Save and print individual or group job readings
  • Customize job title
  • View data in Fahrenheit or Celsius
  • Append notes to each job
  • Generate graphical histogram
  • All these features are provided in an easy to use, GUI interface, and are compatible with Windows 95/98/ME/2000/XP.



ACCUSCAN

Ensure the quality of every project.

Accuscan is Ideal for finished wood products when you prefer not to make holes with a pin-type meter.

Features:

  • Easy to read analog readout
  • Measures %MC in wood over the range of 6%-40%
  • 0-100 reference scale for non-wood building materials
  • 3/4” penetration
  • Durable electrode pads – more rugged than competitors’ sensor pads
  • Built-in battery and calibration checks
  • 1 year warranty
  • Carrying Case included
  • 9-V battery included

J-2000

Features:

  • Microcontroller circuit
  • Corrects for 48 individual species and temperature (°F and °C)
  • Averages up to 100 accumulated readings
  • Measures moisture content over the range of 6% to 40%
  • Connector for an external electrode
  • One-year warranty
  • Packed with features, the J-2000 is popular among woodworkers, small shops, and furniture manufacturers

J-2000 Package Variations:

With Case:  Includes meter, carrying case and extra contact pins for the meter.  Order as J-2000W/CS.

Package:  Includes meter, 26-ES electrode, extra contact pins for the meter, extra #496 pins for the 26-ES electrode and carrying case.  Order as J-2000/PKG.

Also available with 6% to 60% moisture range. Order as J-2000/XW/CS or
J-2000/X/PKG

                                                                        J-4

Features:

  • Popular analog readout
  • Moisture content range from 6% to 30%
  • Connector for an external electrode
  • One-year warranty
  • A favorite among woodworkers and small shops

J-4 Package Variations:

With Case:  Includes meter, carrying case and extra contact pins for the meter.  Order as J-4W/CS.

Package:  Includes meter, 26-ES electrode, extra contact pins for the meter, extra #496 pins for the 26-ES electrode and carrying case.  Order as J-4/PKG.

J-Lite

Features:

  • Microcontroller circuit for increased reliability and accuracy
  • 12 bright LEDs — great for reading in direct sun light or dark areas. Gives the most precise readings of any LED meter available today
  • Moisture content range from 6% - 30%
  • Connector for an external electrode
  • Industry only three-year warranty
  • The perfect tool for a hobbyist, woodworker and home inspector

BD-2100

Features:

· Digital readout

· Three scales:

o Wood Scale —6% to 40% moisture range. Use for flooring and building material such as

                         wood studs, floor joists, subfloors

o Reference Scale — reads from 0 to 100 on a relative basis. Use on non-wood materials

                        such as concrete, plaster, and insulation

o Gypsum Scale — 0.2%-50% moisture range. Use on sheetrock

· Averages up to 100 accumulated readings

· Set-point alerts you to when a pre-selected MC is reached

· Connector to attach any available electrode for deep penetration

· One- year warranty

· Truly one of the most versatile moisture meters available today, the BD-2100 is perfect for

  The professional contractor



BD-2100 Package Variations:

With Case: Includes meter, carrying case and extra contact pins for the meter. Order as

                   BD-2100W/CS.

Flooring Package: Includes meter, 26-ES electrode, extra contact pins for the meter,

                   extra #496 pins for the 26-ES electrode and carrying case.
